DTC363TK/DTC363TS is a digital switch transistor with a rated current of 600mA and a low saturation voltage of 40mV, which can be used in mute circuits

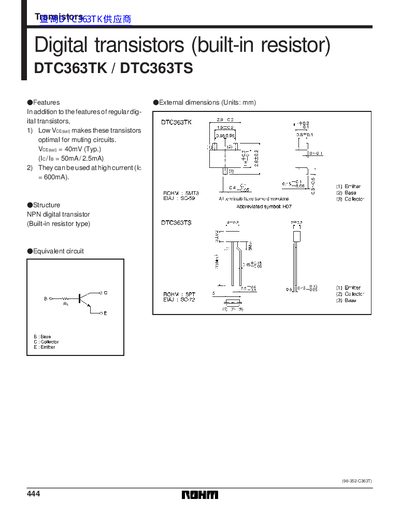

This document provides technical specifications for the ROHM DTC363TK and DTC363TS series of NPN digital transistors. These devices feature a built-in resistor optimized for muting circuits, offering a low collector-emitter saturation voltage (Vce(sat)) of typically 40mV.
| Collector current (Ic) | 600 mA |
|---|---|
| Junction temperature (Tj) | 150 C |
| Collector-emitter saturation voltage (Vce(sat)) | 40 mV (Typ.) |
| DC current transfer ratio (hfe) | 100 to 600 |
The typical collector-emitter saturation voltage is 40 mV when the current ratio is 50 mA/2.5 mA.
The maximum collector current rating is 600 mA.
The maximum junction temperature is 150 C.
