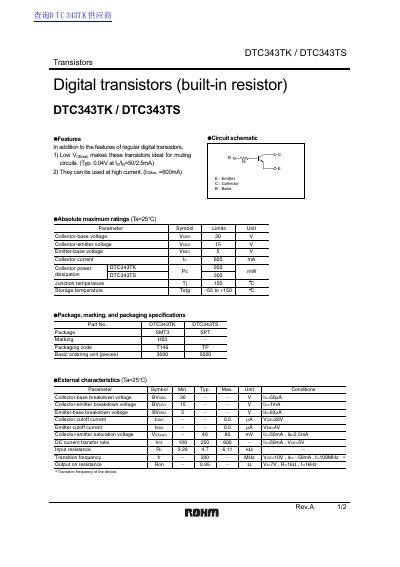

ROHM DTC343TK/DTC343TS Digital Transistors Datasheet

This document describes the features and characteristics of the DTC343TK / DTC343TS digital transistors (built-in resistor). These transistors have low VCE(sat) and can handle high current, making them ideal for muting circuits and other applications.

Brand: ROHM
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 50 KB
Published: 12 June, 2012
Updated: 29 September, 2023
MD5 checksum: 6FD947E22E4B2835DA9406352FDA1E51
PDF: ROHM DTC343TK/DTC343TS Digital Transistors Datasheet PDF

About this manual

The document describes the DTC343TK and DTC343TS as digital transistors featuring a built-in resistor. Key features include low collector-emitter saturation voltage (VCE(sat)) suitable for muting circuits, with a typical value of 0.04V at specific current conditions, and high current capability up to 600mA.

What's inside

Features
Circuit Schematic
Absolute Maximum Ratings
Package Marking
External Characteristics
Electrical Characteristic Curves

Specifications

Collector current (IC) Max.	600 mA
Collector-emitter saturation voltage (VCE(sat)) Typ.	0.04 V
DC current transfer ratio (hFE) Min.	100

Frequently asked questions

What is the maximum collector current these transistors can handle?

The device supports a maximum collector current of 600 mA.

What is the typical saturation voltage when the collector and base currents are 50 mA and 2.5 mA respectively?

The typical collector-emitter saturation voltage is 0.04 V under those conditions.

What are the minimum and maximum operating temperatures for the junction?

The junction temperature ranges from a minimum of -55°C to a maximum of +150°C.
