ROHM MTZJ22B Zener Diode Datasheet

MTZJ22B is a kind of zener diode from ROHM, with high reliability and glass sealed envelope.

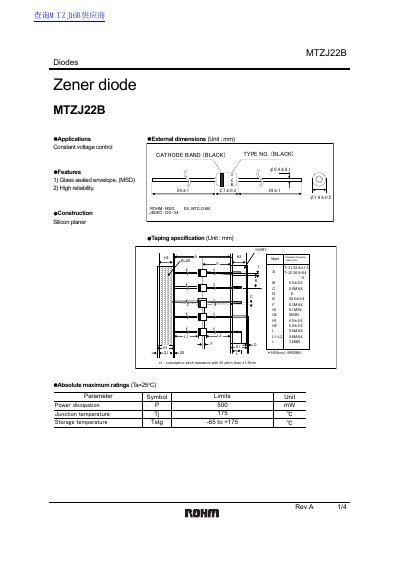

ROHM MTZJ22B Zener Diode Datasheet - cover page
Brand
ROHM
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
145 KB
Published
12 June, 2012
Updated
30 September, 2023
MD5 checksum
C81AA141F552835873E73016AB9B6634
PDF
ROHM MTZJ22B Zener Diode Datasheet PDF

About this manual

This document is a technical datasheet for the ROHM MTZJ22B, a silicon planar zApplic ations diode designed for constant voltage control. It features a glass sealed envelope (MSD) package conforming to JEDEC standard DO-34 and ROHM's MSDEX specification.

What's inside

  • Features
  • Construction
  • Taping specification
  • Absolute maximum ratings
  • Power dissipation
  • Temperature coefficient
  • Reverse voltage characteristics
  • Capacitance between terminals

Specifications

Package TypeMSDEX (DO-34)
Construction MaterialSilicon planar

Frequently asked questions

What is the zener voltage of the MTZJ22B diode?

The zener voltage is 2.7 V with a tolerance of ±0.3 V.

Download PDF (145 KB)
