TL5002 is a pulse-width-modulation control circuit launched by Texas Instruments. It is suitable for applications in the voltage range of 3.6V-40V, and has an internal undervoltage lockout circuit. It can provide a 20kHz to 500kHz oscillation frequency and support 0-100% dead time control. It is ideal for DDR memory applications and has uncommitted error amplifier inputs

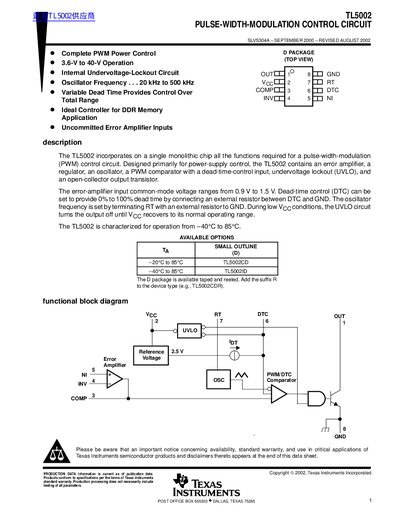

The TL5002 is a monolithic chip designed primarily for power-supply control, incorporating an error amplifier, regulator, oscillator, PWM comparator with dead-time control, undervoltage lockout, and an open-collector output transistor. It is characterized for operation from -40°C to 85°C and is ideal for DDR memory applications.
Key features include a 2.5-V internal voltage reference, an uncommitted error amplifier with a 15 MHz unity-gain bandwidth, and an oscillator frequency adjustable between 20 kHz and 500 kHz. The device includes a dead-time control input to limit duty cycle and an undervoltage-lockout circuit to protect against low supply voltages.
| Supply Voltage | 3.6 V to 40 V |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| Oscillator Frequency Range | 20 kHz to 500 kHz |
| Reference Voltage | 2.5 V |
| Output Current (Max) | 21 mA |
| Output Voltage Rating | 51 V |
| Unity-Gain Bandwidth | 15 MHz |
The device is characterized for operation from -40°C to 85°C.
The TL5002 supports a supply voltage range of 3.6 V to 40 V.
The output transistor has a maximum collector current rating of 21 mA.
