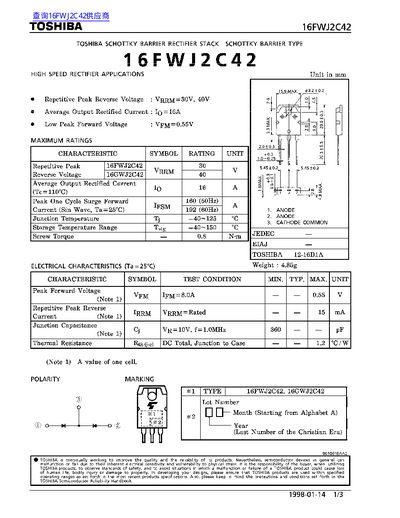

This document is a technical datasheet for the Toshiba 16FWJ2C42, a high-speed Schottky barrier rectifier stack designed for applications requiring low forward voltage. The device features an average output rectified current of up to 16A at a case temperature of 110°C and operates within a junction temperature range of -40°C to 125°C.
The datasheet provides detailed maximum ratings, including repetitive peak reverse voltages of 30V or 40V depending on the specific part number. It also includes electrical characteristics such as typical peak forward voltage of 0.55V and junction capacitance of 360pF at 1MHz. The document contains graphical data illustrating average output rectified current versus instantaneous forward voltage, reverse leakage current versus reverse voltage, and thermal resistance curves.
| Average Output Rectified Current (Ta=110°C) | 16 A |
|---|---|
| Low Peak Forward Voltage | Vfm = 0.55 V |
| Repetitive Peak Reverse Voltage (16GWJ2C42) | 40 V |
| Peak One Cycle Surge Forward Current (50Hz) | 160 A |
| Junction Temperature Range | -40~125 C |
| Storage Temperature Range | -40~150 C |
| Thermal Resistance (Junction to Case) | 1.2 °C/W |
The maximum junction temperature is 125°C.
