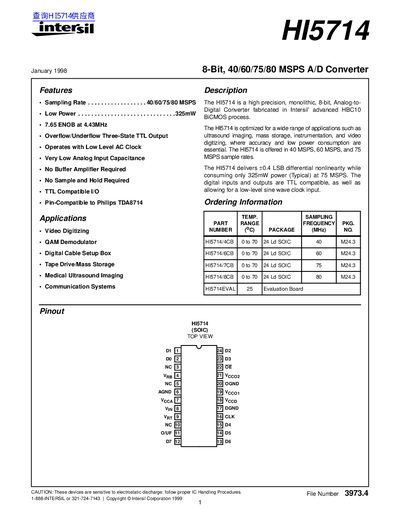

The HI5714 is a high precision, monolithic, 8-bit, Analog-to-Digital Converter fabricated in Intersil’ advanced HBC10 BiCMOS process. It is offered in 40 MSPS, 60 MSPS, and 75 MSPS sample rates. The HI5714 delivers ±0.4 LSB differential nonlinearity while consuming only 325mW power (Typical) at 75 MSPS.
The HI5714 is a monolithic, 8-bit A/D converter fabricated in Intersil's advanced HBC10 BiCMOS process. It is optimized for applications requiring accuracy and low power consumption, such as ultrasound imaging, mass storage, instrumentation, and video digitizing.
The device offers four sampling rate options: 40 MSPS, 60 MSPS, 75 MSPS, and 80 MSPS. Key features include a typical power dissipation of 325mW at 75 MSPS, TTL-compatible inputs and outputs, and the ability to operate with low-level AC clocks without requiring buffer amplifiers or sample-and-hold circuits.
| Resolution | 8-bit |
|---|---|
| Effective Number of Bits (ENOB) | 7.65 bits @ 4.43MHz |
| Power Dissipation | 325mW (Typical) |
| Operating Temperature Range | 0°C to 70°C |
| Package Type | SOIC |
No, the device does not require a buffer amplifier.
No, the HI5714 does not require a sample and hold circuit.
