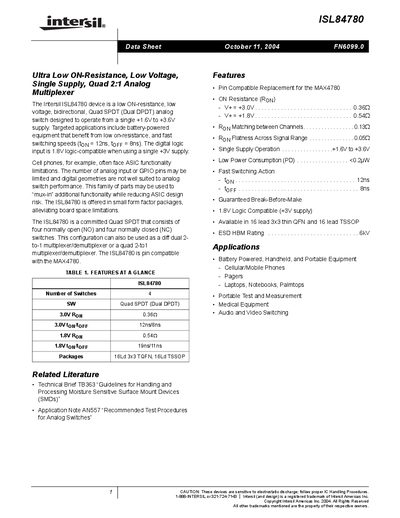

Intersil ISL84780 Ultra Low ON-Resistance Analog Multiplexer Datasheet

ISL84780 is an Intersil low voltage, single-supply, quad 2:1 analog multiplexer.

Brand: Intersil
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 407 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: BFEE20E52936667BFD7B87EF8C8B31D0
PDF: Intersil ISL84780 Ultra Low ON-Resistance Analog Multiplexer Datasheet PDF

About this manual

The Intersil ISL84780 is a low ON-resistance, low voltage, bidirectional, Quad SPDT (Dual DPDT) analog switch designed to operate from a single +1.6V to +3.6V supply. It is a committed Quad SPDT that consists of four normally open (NO) and four normally closed (NC) switches, offering configurations for dual 2-to-1 multiplexers or quad 2-to-1 multiplexers. The device is pin compatible with the MAX4780.

What's inside

Features
Applications
Pinouts
Absolute Maximum Ratings
Operating Conditions
Electrical Specifications
Test Circuits

Specifications

Number of Switches	4
Switch Configuration	Quad SPDT (Dual DPDT)
ON Resistance (Ron) @ 3.0V	0.36Ω
ON Resistance (Ron) @ 1.8V	0.54Ω
Turn-ON Time (ton)	12ns
Single Supply Voltage Range	+1.6V to +3.6V
Packages	16Ld 3x3 TQFN, 16Ld TSSOP

Frequently asked questions

What is the supply voltage range for the ISL84780?

The device operates from a single +1.6V to +3.6V supply.

Is the ISL84780 compatible with the MAX4780?

Yes, the ISL84780 is a pin compatible replacement for the MAX4780.

What is the typical on-resistance at 3.0V?

The typical on-resistance is 0.36Ω at 3.0V.
