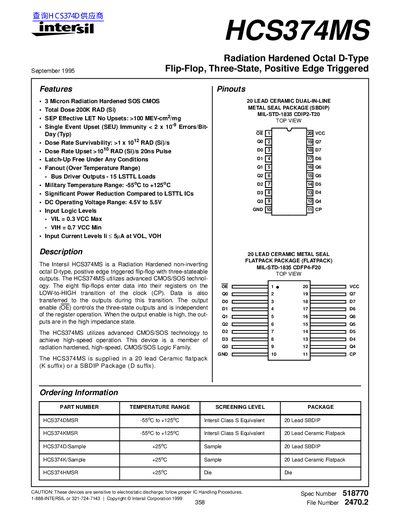

HCS374MS is a radiation-hardened eight-bit D-type flip-flop produced by Intersil. It has three-state output, positive edge trigger, and a working temperature range of -55oC to +125oC. This product can be used in military electronic equipment and has high radiation resistance and low power consumption.
The Intersil HCS374MS is a radiation-hardened non-inverting octal D-type, positive edge-triggered flip-flop with three-stateable outputs. Utilizing advanced CMOS/SOS technology, the device is designed for high-speed operation and is part of the radiation-hardened, high-speed CMOS/SOS Logic Family. It is available in 20-lead Ceramic flatpack or SBDIP packages.
| Technology | 3 Micron Radiation Hardened SOS CMOS |
|---|---|
| Total Dose | >200K RAD (Si) |
| Single Event Upset Immunity | < 2 x 10^-6 Errors/Bit-Day (Typ) |
| Dose Rate Survivability | >1 x 10^10 RAD (Si)/s |
| Latch-Up Free | Under Any Conditions |
| Fanout | 15 LSTTL Loads |
| Temperature Range | -55°C to +125°C |
| Supply Voltage | 4.5V to 5.5V |
| Max Operating Frequency | 30 MHz |
| Package Types | 20 Lead SBDIP or Ceramic Flatpack |
The HCS374MS utilizes advanced CMOS/SOS technology.
The eight flip-flops enter data into their registers on the LOW-to-HIGH transition of the clock (CP).
The output enable (OE) controls the three-state outputs and is independent of the register operation.
Yes, these devices are sensitive to electrostatic discharge and require proper IC handling procedures.
