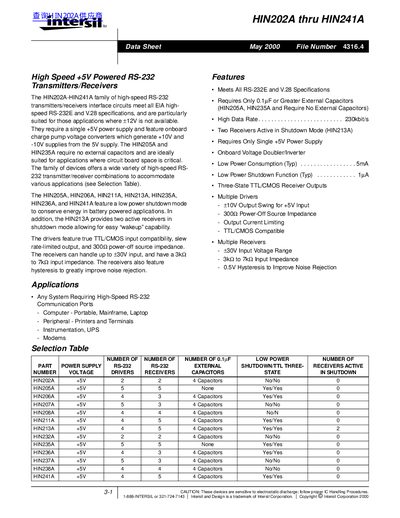

The HIN202A-HIN241A family of high-speed RS-232 transmitters/receivers interface circuits meet all ElA high- speed RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available.
The HIN202A through HIN241A family of integrated circuits are high-speed RS-232 transmitters/receivers designed to meet EIA high-speed RS-232E and V.28 specifications. These devices are particularly suited for applications where a +12V supply is not available, as they require only a single +5V power supply.
| Data Rate | 230kbit/s |
|---|---|
| Power Supply Requirement | +5V |
| Input Voltage Range | +30V |
| Output Swing | +10V for +5V Input |
| Power Consumption (Typ) | 5mA |
The HIN202A-HIN241A family requires only a single +5V power supply.
The HIN205A and HIN235A require no external capacitors, while others require 0.1µF or greater.
The devices support a high data rate of 230kbit/s.
