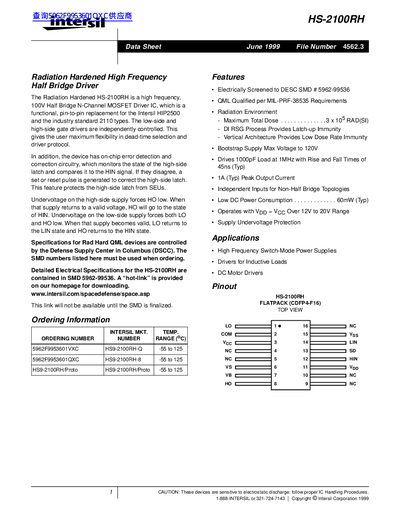

The HS-2100RH is a high frequency, 100V Half Bridge N-Channel MOSFET Driver IC, which is a functional, pin-to-pin replacement for the Intersil HIP2500 and the industry standard 2110 types.
The Intersil HS-2100RH is a high-frequency, 100V Half Bridge N-Channel MOSFET Driver IC designed as a functional, pin-to-pin replacement for the Intersil HIP2500 and industry standard 2110 types. It features independently controlled low-side and high-side gate drivers to allow maximum flexibility in dead-time selection.
| Maximum Total Dose | 3x 10° RAD(SI) |
|---|---|
| Bootstrap Supply Max Voltage | to 120V |
| Peak Output Current | 1A (Typ) |
| Low DC Power Consumption | 60mW (Typ) |
The device has a maximum total dose of 3x10^6 RAD(SI).
The typical peak output current is 1A.
It operates with Vpp = Voc over a 12V to 20V range.
