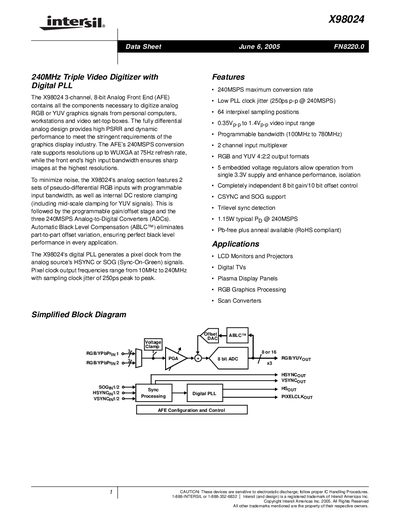

This document is the datasheet of Intersil X98024 240MHz Triple Video Digitizer with Digital PLL
The Intersil X98024 is a 3-channel, 8-bit Analog Front End (AFE) designed to digitize analog RGB or YUV graphics signals from personal computers, workstations, and video set-top boxes. It features a fully differential analog design with high PSRR and dynamic performance, supporting resolutions up to WUXGA at 75Hz refresh rate.
| Maximum Conversion Rate | 240 MSPS |
|---|---|
| ADC Resolution | 8 Bits |
| Input Range | 0.35Vp-p to 1.4Vp-p |
| Operating Temperature Range | 0°C to +70°C |
| Supply Voltage | 3.3V |
| Typical Power Dissipation | 1.15W |
| PLL Jitter | 250ps p-p |
The device supports RGB and YUV 4:2:2 output formats.
The X98024 supports a maximum conversion rate of 240MHz.
Yes, Pb-free plus anneal versions are available and are RoHS compliant.
