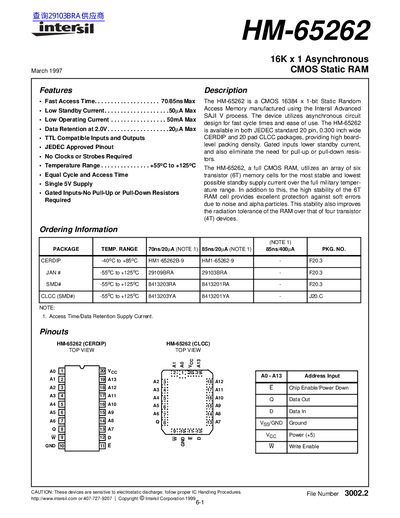

This document describes the features and characteristics of the HM-65262 16K x 1 Asynchronous CMOS Static RAM manufactured on March 1, 1997. It includes fast access time, low standby current, low operating current, data retention at 2.0V, TTL compatible inputs and outputs, etc.
The Intersil HM-65262 is a full CMOS Static Random Access Memory (SRAM) with a capacity of 16384 x 1 bit. It utilizes an array of six-transistor memory cells to ensure stable operation and low power consumption over the military temperature range. The device operates asynchronously, requiring no clocks or strobes, which simplifies circuit design and improves ease of use.
| Capacity | 16K x 1-bit (16384 x 1) |
|---|---|
| Access Time | 70/85ns Max |
| Supply Voltage | +4.5V to +5.5V |
| Temperature Range (Military) | -55°C to +125°C |
| Memory Cell Type | 6T (Six Transistor) |
The maximum access time is 85ns.
No, it is an asynchronous device that requires no clocks or strobes.
