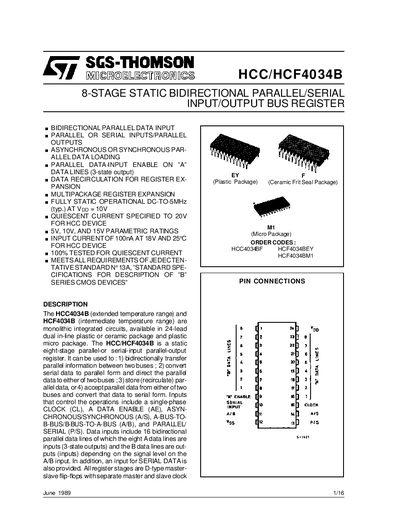

HCC/HCF4034B is an 8-stage static bidirectional parallel/serial input/output register
The HCC/HCF4034B is a monolithic integrated circuit designed as an eight-stage parallel-or serial-in/parallel-output register. It supports bidirectional data transfer between two buses, serial-to-parallel conversion, data storage, and register expansion through cascading. The device features fully static operation with a typical DC-to-5MHz frequency at 10V supply voltage.
| Number of Stages | 8 |
|---|---|
| Supply Voltage (HCC Types) | -0.5 to + 20 V |
| Supply Voltage (HCF Types) | -0.5 to + 18 V |
| Operating Temperature (HCC Types) | -55 to + 125 °C |
| Operating Temperature (HCF Types) | -40 to + 85 °C |
| Maximum Clock Frequency (5V) | 2 MHz |
| Maximum Clock Frequency (10V) | 5 MHz |
The order codes are HCC4034BF and HCF4034BEY for standard testing, and HOF40348M4 for quiescent current requirements.
Yes, data recirculation is accomplished by making the A/B signal high and the AE signal low.
The quiescent current is 600 µA at 15V for HCC types.
