The LM101A is a general-purpose operational amplifier with many features and characteristics, such as supply voltages from ±5V to ±22V, low current drain, overload protection on the input and output, no latch-up when the common-mode range is exceeded, free from oscillations, and compensation with a single 30pF capacitor. It has advantages over internally compensated amplifiers in that the compensation can be tailored to the particular application, allowing for a slew rate of 10V/µs and a bandwidth of 3.5MHz.

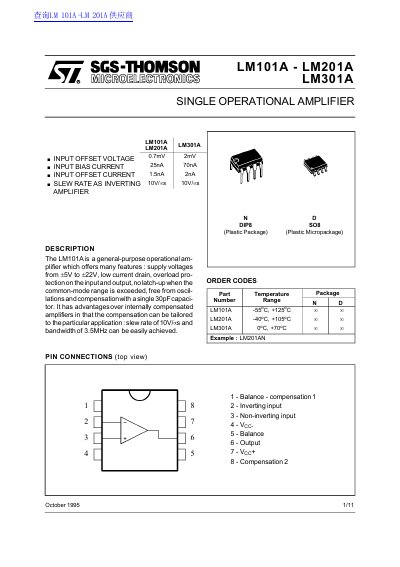

This document is a datasheet for the LM101A, LM201A, and LM301A single operational amplifiers manufactured by SGS-THOMSON Microelectronics. It provides comprehensive electrical characteristics including input offset voltage, bias current, slew rate, and gain-bandwidth product for all three models across various temperature ranges.
| Supply Voltage | ±5V to ±22V |
|---|---|
| Input Offset Voltage (Typical) | 0.7mV (LM101A) |
| Slew Rate | 10V/µs |
| Bandwidth | 3.5MHz |
| Operating Temperature (LM101A) | -55°C to +125°C |
| Operating Temperature (LM201A) | -40°C to +105°C |
| Operating Temperature (LM301A) | 0°C to +70°C |
The typical input offset voltage for the LM101A is 0.7mV.
Yes, it is free from oscillations and can be compensated with a single 30pF capacitor.
The maximum supply voltage is ±22V.
