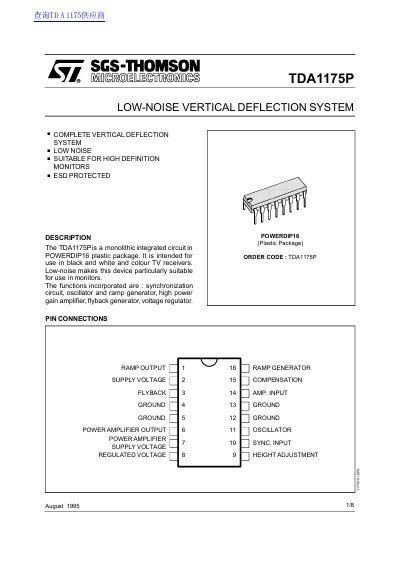

TDA1175P is a low-noise vertical deflection system suitable for high-definition monitors. It incorporates synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, and voltage regulator.
The TDA1175P is a monolithic integrated circuit in a POWERDIP16 plastic package designed for use in black and white and colour TV receivers. It is particularly suitable for monitors due to its low-noise characteristics. The device incorporates a synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, and voltage regulator.
| Package Type | POWERDIP16 plastic package |
|---|---|
| Supply Voltage Range | 10 to 35 V |
| Regulated Voltage at Pin 8 | 6.5 to 6.9 V |
| Output Peak Current (non repetitive) | 2 A |
| Power Dissipation (Tamb = 70°C) | 1 W |
| Storage and Junction Temperature | - 40 to + 150 °C |
It is intended for use in black and white and colour TV receivers, and is particularly suitable for monitors.
The device includes a synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, and voltage regulator.
The absolute maximum rating for the supply voltage at Pin 2 is 35 V.
