HCC4073B/81B/82B HCF4073B/81B/82B are AND gates produced by Honeywell Company. The working voltage range is 0.5～20V and the input current range is -0.5～VDD+0.5V. The output current is 100mA.

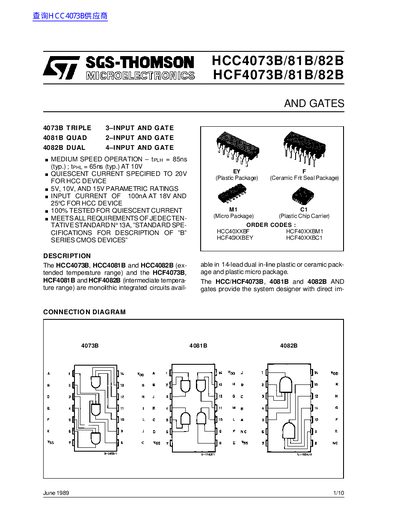

This document provides technical specifications for the HCC4073B, HCC4081B, HCC4082B (extended temperature range) and their intermediate temperature counterparts. These monolithic integrated circuits are medium-speed CMOS AND gates available in 14-lead dual in-line plastic or ceramic packages and plastic micro packages.
| Supply Voltage (HCC Types) | -0.5 to +20 V |
|---|---|
| Supply Voltage (HCF Types) | -0.5 to +18 V |
| Operating Temperature (HCC Types) | -55 to +125 °C |
| Operating Temperature (HCF Types) | -40 to +85 °C |
| Total Power Dissipation (per package) | 200 mW |
HCC types operate from -55 to +125 °C while HCF types operate from -40 to +85 °C.
The maximum total power dissipation per package is 200 mW.
