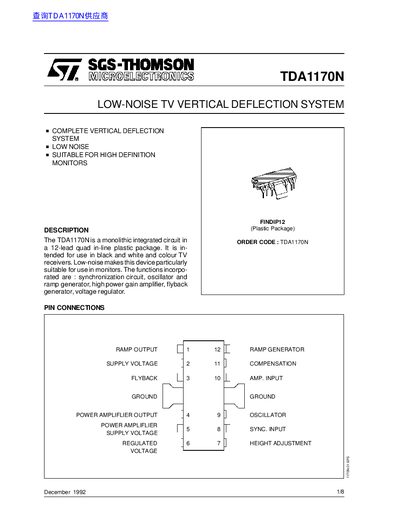

TDA1170N is a low noise TV vertical deflection system. Suitable for high definition monitors.
The TDA1170N is a monolithic integrated circuit in a 12-lead quad in-line plastic package designed for use in black and white and colour TV receivers. It is particularly suitable for high definition monitors due to its low-noise characteristics. The device incorporates a synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, and voltage regulator.
| Package Type | 12-lead quad in-line plastic package |
|---|---|
| Supply Voltage Range | 10 to 35 V |
| Power Dissipation (Tab=90°C) | 5 W |
| Thermal Resistance Junction-Ambient | Max 70 °C/W |
| Free Running Frequency (Typical) | 42.2 Hz |
It is particularly suitable for use in monitors due to its low-noise characteristics.
The device includes a synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, and voltage regulator.
The maximum storage and junction temperature is +150 °C.
