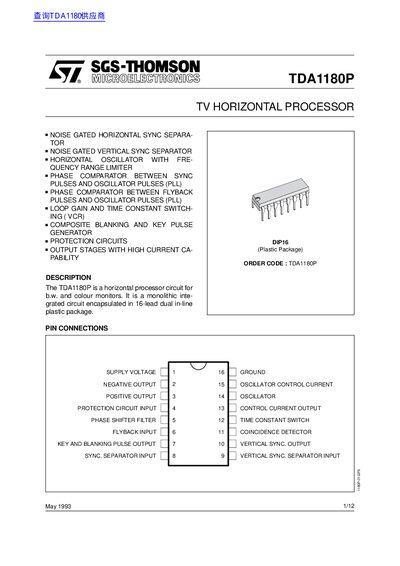

The document is about TDA1180P electronic component. It is a horizontal processor circuit for color monitors. It contains noise gated horizontal sync separator, noise gated vertical sync separator, horizontal oscillator, phase comparator, loop gain and time constant switch, composite blanking and key pulse generator, protection circuits and output stages.
The TDA1180P is a horizontal processor circuit designed for black-and-white and color monitors. It functions as a noise-gated horizontal sync separator and includes a horizontal oscillator with frequency range limiting. The device features phase comparators between sync pulses and the oscillator, as well as between flyback pulses and the oscillator, utilizing Phase Locked Loop (PLL) technology.
| Supply voltage range | 9.5 to 13.2 V |
|---|---|
| Free Running Frequency | 15625 Hz |
| Total power dissipation | 1 W (Tamb < 70°C) |
| Storage and junction temperature | -40 to +150 °C |
The device operates with a supply voltage ranging from 9.5 V to 13.2 V.
The maximum total power dissipation is 1 W when the ambient temperature is less than 70°C.
The rise and fall times of the output pulses are about 150 ns.
