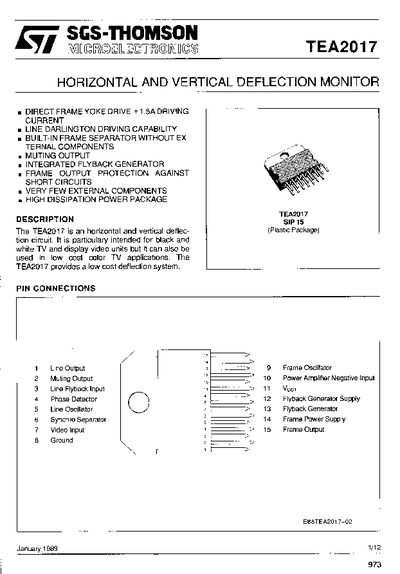

The TEA2017 is a horizontal and vertical deflection circuit designed primarily for black and white TV and display video units, though it can also be used in low-cost color TV applications. It provides a low-cost deflection system with direct frame yoke drive and a line Darlington driving capability.
| Supply Voltage (VCC1) | 8 to 20 V |
|---|---|
| Flyback Generator Supply Voltage (V12) | 10 to 30 V |
| Frame Power Supply Voltage (V14) | 10 to 58 V |
| Line Output Peak Current | 0.8 A |
| Line Output Continuous Current | 0.4 A |
| Max Operating Junction Temperature | 150 °C |
| Free Running Line Period | 61.5 to 66.5 µs |
| Free Running Frame Period | 21.4 to 25 ms |
It is particularly intended for black and white TV and display video units but can also be used in low cost color TV applications.
The maximum recommended junction temperature is 120 °C.
