This document describes the features and characteristics of the TEA2014A video switch, including 1 non-switched video output and 1 switched video output, 50dB video crosstalk, and short circuit protection for inputs and outputs.

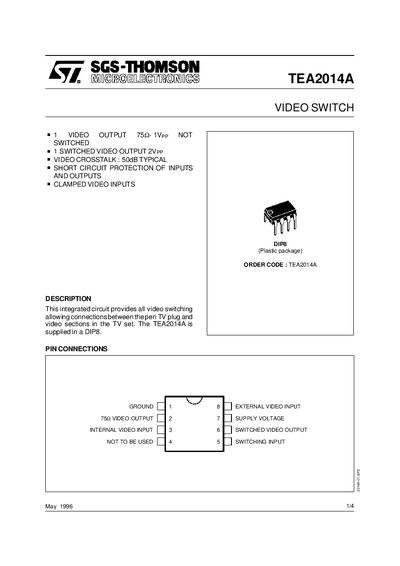

This document is a datasheet for the TEA2014A integrated circuit, a video switch supplied in a DIP8 package. It is designed to provide video switching connections between the TV plug and video sections in a TV set, featuring short circuit protection and clamped video inputs. The device allows for connections between internal and external video inputs to a switched video output.
| Video Output Swing (Switched) | 4 Vpp |
|---|---|
| Video Bandwidth | 6 MHz |
| Output Gain (Pin 6 — Pin 8) | +5 to +7 dB |
| Package Type | DIP8 |
The minimum DC load resistor for Pin 6 is 600 Ohms.
The typical video crosstalk is 50dB.
Yes, it includes short circuit protection of inputs and outputs.
