1N60 series are small, high-power transient voltage suppressors with excellent clamping capability, low zener impedance, and can withstand up to 15000 watts of shock pulses. They can still work normally at extremely low temperatures.

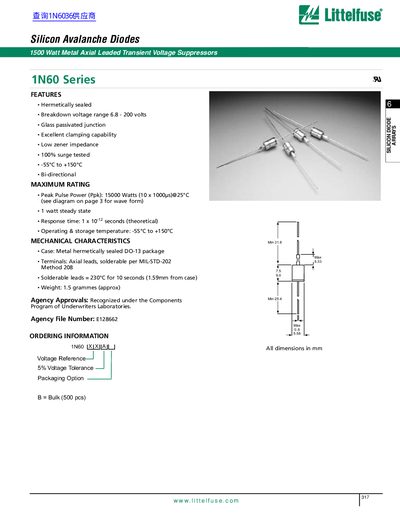

This document provides technical data for the Littelfuse 1N60 Series Silicon Avalanche Diodes. These are 1500 Watt Metal Axial Leaded Transient Voltage Suppressors designed with a hermetically sealed case and glass passivated junction. Key features include excellent clamping capability, low zener impedance, and bi-directional operation suitable for temperatures ranging from -55°C to +150°C.
| Peak Pulse Power (Ppk) | 1500 Watts (10 x 1000us) @25°C |
|---|---|
| Steady State Power | +1 watt |
| Response Time | 1 x 10^-9 seconds (theoretical) |
| Operating Temperature Range | -55°C to +150°C |
| Package Type | Metal hermetically sealed DO-13 package |
| Terminal Type | Axial leads, solderable per MIL-STD-202 Method 208 |
| Weight | 1.5 grammes (approx) |
The suffix 'A' denotes a device with 5% voltage tolerance.
Preferred voltages are indicated by an asterisk (*) next to the part number in the electrical specification table.
