The 213 series Slo-Blo® fuse is designed to International (IEC) Standards for use globally. It meets the IEC 60127-2, Sheet 3 specification for Time Lag Fuses. It is available in ratings of 0.200 to 6.3 amperes. RoHS and Lead-Free versions are available, add XP suffix to standard catalog number.

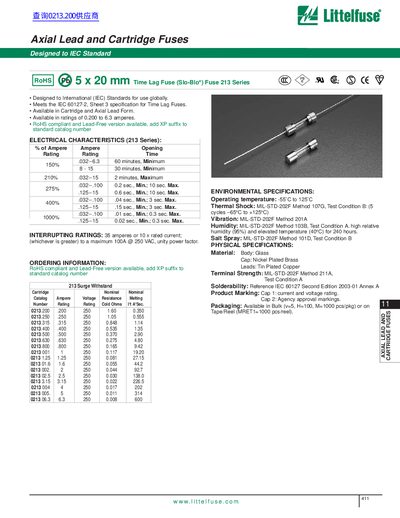

This document provides technical specifications for the Littelfuse 213 Series and 218 Series Axial Lead and Cartridge Fuses. These time lag (Slo-Blo) fuses are designed to International (IEC) Standards, specifically meeting the IEC 60127-2, Sheet 3 specification.
| Standard Compliance | IEC 60127-2, Sheet 3 specification for Time Lag Fuses |
|---|---|
| Operating Temperature | -55°C to 125°C |
| Interrupting Rating (Max) | 100A @ 250 VAC, unity power factor |
| Body Material | Glass |
| Cap Material | Nickel Plated Brass |
Yes, a lead-free version is available by adding the XP suffix to the standard catalog number.
The 213 Series is rated from 0.200 to 6.3 amperes, while the 218 Series ranges from 0.032 to 15 amperes.
