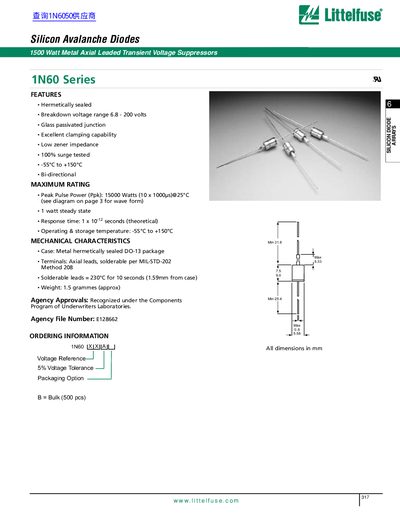

Littelfuse 1N60 Series Silicon Avalanche Diode Datasheet
This document is a datasheet for the Littelfuse 1N60 Series of Silicon Avalanche Diodes. These devices are described as 1500 Watt Metal Axial Leaded Transient Voltage Suppressors designed with hermetically sealed cases and glass passivated junctions.
The datasheet provides comprehensive electrical specifications, including reverse standoff voltage, breakdown voltage, maximum reverse leakage, and maximum clamping voltage for various part numbers. It also details mechanical characteristics such as the DO-13 package type, lead solderability per MIL-STD-202 Method 208, and operating temperature ranges from -55°C to +150 °C.
Littelfuse 1N60 specifications
| Peak Pulse Power (Ppk) | 15000 Watts (10 x 1000µs)@25 °C |
|---|---|
| Steady State Power | 1 watt |
| Response Time | 1 x 10-12 seconds (theoretical) |
| Operating Temperature Range | -55°C to +150 °C |
| Package Type | Metal hermetically sealed DO-13 package |
Source: Littelfuse 1N60 Series Silicon Avalanche Diode Datasheet
All Littelfuse 1N60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the breakdown voltage range for this series?
The breakdown voltage range is 6.8 - 200 volts.
From: Littelfuse 1N60 Series Silicon Avalanche Diode Datasheet
What does the suffix 'A' denote in part numbers?
The suffix 'A' denotes a device with 5% tolerance.
From: Littelfuse 1N60 Series Silicon Avalanche Diode Datasheet
What does the suffix 'A' denote in the part number?
The suffix 'A' denotes a device with 5% voltage tolerance.
What are the preferred voltages for this series?
Preferred voltages are indicated by an asterisk (*) next to the part number in the electrical specification table.
