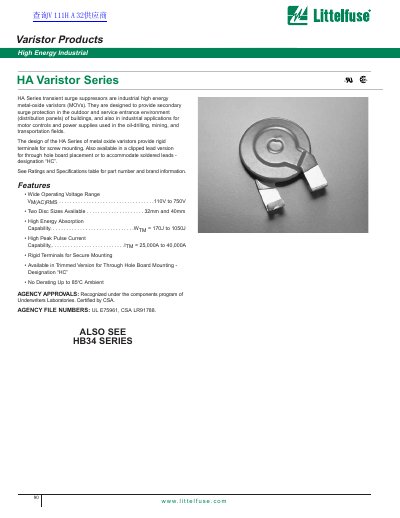

HA Series transient surge suppressors are industrial high energy metal-oxide varistors (MOVs). They are designed to provide secondary surge protection in the outdoor and service entrance environment (distribution panels) of buildings, and also in industrial applications for motor controls and power supplies used in the oil-drilling, mining, and transportation fields.
The Littelfuse HA Series consists of industrial high energy metal-oxide varistors (MOVs) designed to provide secondary surge protection. They are intended for use in outdoor and service entrance environments, such as distribution panels, as well as in industrial applications for motor controls and power supplies in fields like oil-drilling, mining, and transportation. The series features rigid terminals for secure screw mounting and is also available in a clipped lead version designated as 'HC' for through-hole board placement.
| Operating Voltage Range VM(AC)RMS | 110V to 750V |
|---|---|
| Disc Sizes Available | 32mm and 40mm |
| High Energy Absorption Capability WTM | 170J to 1050J |
| High Peak Pulse Current Capability ITM | 25,000A to 40,000A |
| Operating Ambient Temperature Range | -55 to 85 oC |
| Storage Temperature Range | -55 to 125oC |
| Hi-Pot Encapsulation Isolation Voltage | 2500 V |
The HA Series is available in two disc sizes: 32mm and 40mm.
Yes, a clipped lead version designated as 'HC' is available for through hole board placement.
The HA Series has a high peak pulse current capability ranging from 25,000A to 40,000A.
