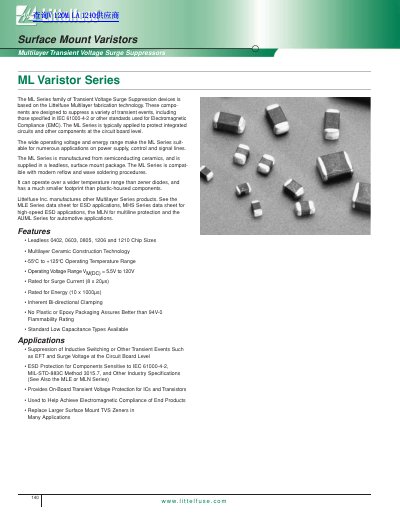

ML Varistor Series is a family of Transient Voltage Surge Suppression devices based on Littelfuse Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC).
The Littelfuse ML Series family of Transient Voltage Surge Suppression devices is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The ML Series is typically applied to protect integrated circuits and other components at the circuit board level.
| Operating Temperature Range | -55°C to +125°C |
|---|---|
| Operating Voltage Range | 5.5V to 120V |
| Chip Sizes | 0402, 0603, 0805, 1206 and 1210 |
| Construction Technology | Multilayer Ceramic |
| Clamping Voltage Test Current | 10A |
| Typical Leakage Current | <25 µA |
The ML Series is designed to suppress transient events specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC).
The response time of the Zinc Oxide dielectric material is less than 1 nanosecond.
The typical capacitance is measured at a frequency of 1MHz.
