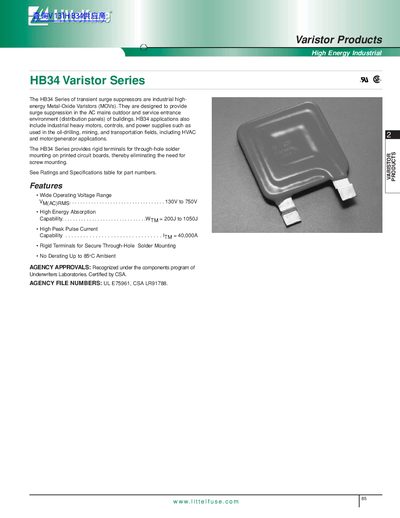

The HB34 Series is an industrial high-energy metal-oxide varistor (MOV) designed to provide surge suppression in the AC mains outdoor and service entrance environment of buildings. It is suitable for industrial heavy motors, controls, and power supplies used in the oil-drilling, mining, and transportation fields, as well as HVAC and motor/generator applications.
The HB34 Series consists of industrial high-energy Metal-Oxide Varistors (MOVs) designed for surge suppression in AC mains outdoor and service entrance environments, such as distribution panels. These devices are also suitable for industrial heavy motors, controls, and power supplies in fields like oil-drilling, mining, and transportation. The series features rigid terminals for through-hole solder mounting on printed circuit boards, eliminating the need for screw mounting, and offers no derating up to 85°C ambient temperature.
| Operating Voltage Range (AC RMS) | 130V to 750V |
|---|---|
| High Energy Absorption Capability | 200J to 1050J |
| Peak Pulse Current Capability | 40,000A |
| Operating Ambient Temperature Range | -55 to 85 °C |
| Storage Temperature Range | -55 to 125 °C |
| Disc Size | 34mm |
The HB34 Series uses rigid terminals for through-hole solder mounting on printed circuit boards.
No, the HB34 Series provides no derating up to 85°C ambient temperature.
The series is recognized by Underwriters Laboratories and certified by CSA.
