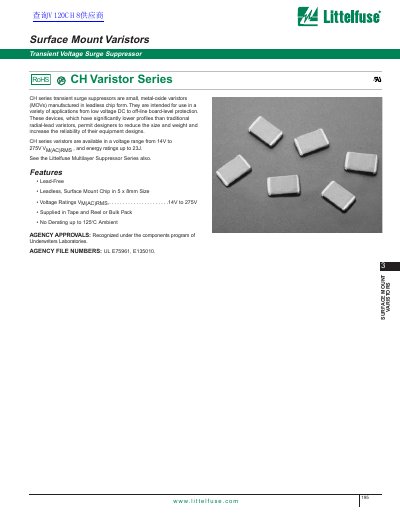

CH series transient surge suppressors are small, metal-oxide varistors (MOVs) manufactured in leadless chip form. They are intended for use in a variety of applications from low voltage DC to off-line board-level protection. These devices, which have significantly lower profiles than traditional radial-lead varistors, permit designers to reduce the size and weight and increase the reliability of their equipment designs. CH series varistors are available in a voltage range from 14V to 275V VM(AC)RMS , and energy ratings up to 23J. See the Littelfuse Multilayer Suppressor Series also.
The Littelfuse CH Varistor Series consists of small, leadless chip metal-oxide varistors (MOVs) designed for low voltage DC to off-line board-level protection. These devices feature a significantly lower profile than traditional radial-lead varistors, allowing designers to reduce equipment size and weight while increasing reliability. They are available in a voltage range from 14V to 275V VM(AC)RMS with energy ratings up to 23J.
| Voltage Range VM(AC)RMS | 14V to 275V |
|---|---|
| Energy Rating | up to 23J |
| Package Size | 5 x 8mm |
| Operating Ambient Temperature | -55 to 125 oC |
| Storage Temperature | -55 to 150 oC |
| Packaging | Tape and Reel or Bulk Pack |
The CH series varistors are manufactured in a leadless surface mount chip size of 5 x 8mm.
The CH series varistors have energy ratings up to 23J.
