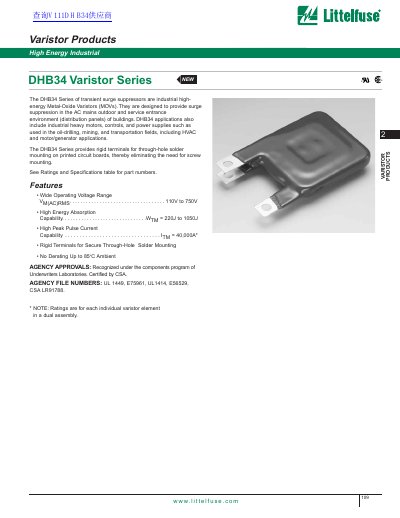

DHB34 series are industrial high-energy Metal-Oxide Varistors (MOVs), designed to provide surge suppression in the AC mains outdoor and service entrance environment (distribution panels) of buildings. DHB34 applications also include industrial heavy motors, controls, and power supplies such as used in the oil-drilling, mining, and transportation fields, including HVAC and motor/generator applications. The DHB34 Series provides rigid terminals for through-hole solder mounting on printed circuit boards, thereby eliminating the need for screw mounting.
The Littelfuse DHB34 Series consists of industrial high-energy Metal-Oxide Varistors (MOVs) designed for surge suppression in AC mains outdoor and service entrance environments, such as distribution panels. These devices are suitable for industrial heavy motors, controls, and power supplies used in oil-drilling, mining, and transportation fields, including HVAC and motor/generator applications. The series features rigid terminals for secure through-hole solder mounting on printed circuit boards, eliminating the need for screw mounting.
| Operating Voltage Range VM(AC)RMS | 110V to 750V |
|---|---|
| High Energy Absorption Capability WTM | 220J to 1050J |
| High Peak Pulse Current Capability ITM | 40,000A |
| Terminal Mounting Type | Through-hole solder mounting |
| Operating Ambient Temperature Range | -55 to 85 C |
| Storage Temperature Range | -55 to 125 C |
| Temperature Coefficient of Clamping Voltage | <0.01 %/C |
The DHB34 series has a high peak pulse current capability of 40,000A for an 8/20µs current wave.
They use rigid terminals for through-hole solder mounting, which eliminates the need for screw mounting.
The series is recognized under the components program of Underwriters Laboratories and certified by CSA.
