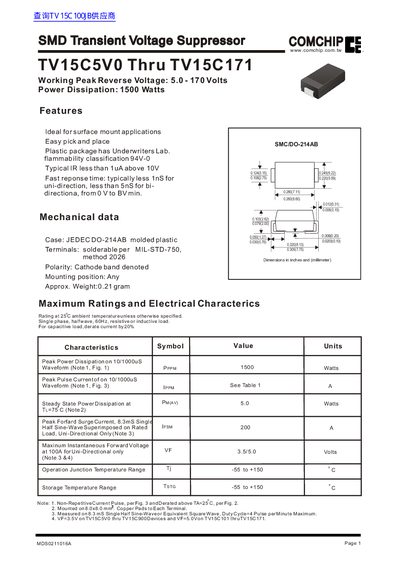

TV15C5V0 Thru TV15C171 is a TVS diode from COMCHIP. It has a maximum working peak reverse voltage of 5.0-170 volts, a maximum power dissipation of 1500 watts, and uses a JEDEC DO-214AB plastic package. Typical leakage current is less than 1uA, and the response time is less than 1ns.
The COMCHIP TV15C series provides surface‑mount transient voltage suppressors ranging from 5 V to 170 V reverse voltage. The devices are offered in JEDEC DO‑214AB molded‑plastic packages and are suitable for both uni‑directional and bi‑directional applications.
Key electrical characteristics include a peak power dissipation of 1500 W, steady‑state power dissipation of 5 W, and a wide operating temperature range. Detailed tables list part numbers, voltage ratings, current ratings, and tolerance codes for each device in the series.
| Peak Reverse Voltage | 5.0 V – 170 V |
|---|---|
| Power Dissipation (Peak) | 1500 W |
| Steady‑State Power Dissipation | 5.0 W |
| Junction Temperature Range | -55 °C to +150 °C |
| Storage Temperature Range | -55 °C to +150 °C |
The TV15C devices cover a reverse voltage range from 5.0 V up to 170 V.
The maximum peak power dissipation is 1500 W.
They are supplied in a JEDEC DO‑214AB molded‑plastic case.
Suffix K denotes 10 % tolerance devices, while suffix J denotes 5 % tolerance devices.
