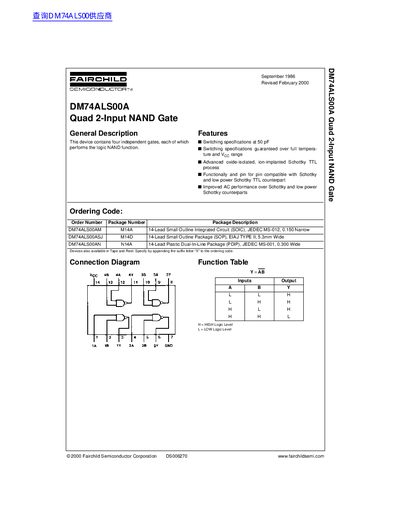

This document describes the features and characteristics of a quad 2-input NAND gate called DM74ALS00A. The device contains four independent gates, each of which performs the logic NAND function.
This document is a technical datasheet for the Fairchild Semiconductor DM74ALS00A, an integrated circuit containing four independent gates that perform the logic NAND function. The device utilizes an advanced oxide-isolated, ion-implanted Schottky TTL process and is functionally and pin-for-pin compatible with standard Schottky and low power Schottky TTL counterparts.
The datasheet provides comprehensive electrical characteristics over recommended operating conditions, including supply voltage ranges from 4.5V to 5.5V and output drive currents up to 8 mA at the LOW level. It also details physical dimensions for three available packages: M14A (SOIC), M14D (SOP), and N14A (PDIP).
| Operating Temperature Range | 0°C to +70°C |
|---|---|
| Storage Temperature Range | -65°C to +150°C |
The device contains four independent gates, each of which performs the logic NAND function.
Yes, it is functionally and pin for pin compatible with Schottky and low power Schottky TTL counterparts.
