dm7473 is dual master-slave j-k flip-flops with clear and complementary outputs

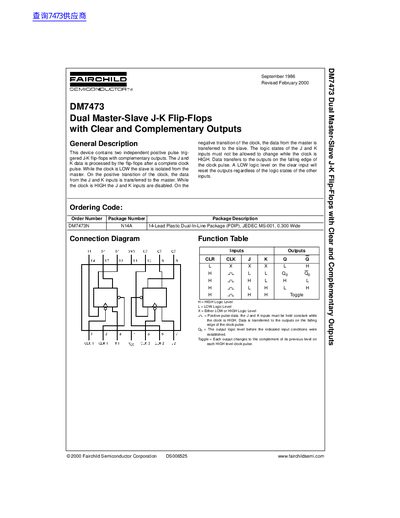

The DM7473 contains two independent positive pulse triggered J-K flip-flops with complementary outputs. Data transfers to the outputs on the falling edge of the clock pulse. A LOW logic level on the clear input will reset the outputs regardless of the logic states of the other inputs.
The device is available in a 14-Lead Plastic Dual-In-Line Package (PDIP). Key electrical characteristics include a maximum clock frequency of 15 MHz and an operating free air temperature range of 0°C to +70°C.
| Package Description | 14-Lead Plastic Dual-In-Line Package (PDIP) |
|---|---|
| Operating Free Air Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -65°C to +150°C |
| Supply Voltage | 4.75V to 5.25V |
| Maximum Clock Frequency | 15 MHz |
| HIGH Level Output Current | -0.4 mA |
| LOW Level Output Current | 16 mA |
Data transfers to the outputs on the falling edge of the clock pulse.
It resets the outputs regardless of the logic states of the other inputs.
The recommended supply voltage is 5V.
