This document is DM7486 datasheet

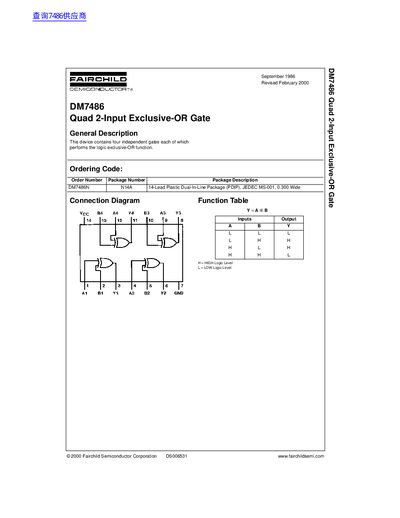

This document is a datasheet for the DM7486, a quad 2-input exclusive-OR gate manufactured by Fairchild Semiconductor. The device performs the logic exclusive-OR function and is available in a 14-lead plastic dual-in-line package (PDIP).
The datasheet provides absolute maximum ratings, recommended operating conditions, and electrical characteristics including input/output voltages and currents. It also lists switching characteristics for propagation delay times and includes physical dimensions for the N14A package.
| Logic Function | Quad 2-Input Exclusive-OR Gate |
|---|---|
| Package Type | 14-Lead Plastic Dual-In-Line Package (PDIP) |
| Operating Temperature Range | 0°C to +70°C |
The device performs the logic exclusive-OR function.
The maximum operating free air temperature is +70°C.
