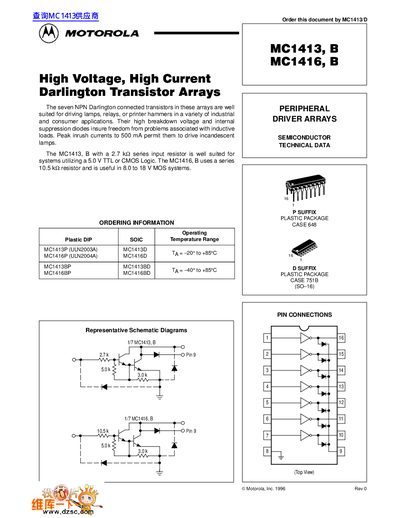

This document is the MC1413/D technical data manual, which introduces the features and characteristics of the product, including pin connections, packages, operating temperature range, and maximum ratings.
This document provides technical data for the MC1413, B and MC1416, B peripheral driver arrays. These devices contain seven NPN Darlington connected transistors designed to drive inductive loads such as lamps, relays, or printer hammers without issues from back EMF due to internal suppression diodes.
| Output Voltage (Vo) | 50 V |
|---|---|
| Collector Current — Continuous (Io) | 500 mA |
| Base Current — Continuous (IB) | 25 mA |
| Operating Ambient Temperature Range (MC1413-16) | -20 to +85 °C |
| Storage Temperature Range (Tstg) | -55 to +150 °C |
They are well suited for driving lamps, relays, or printer hammers in industrial and consumer applications.
The maximum output leakage current (IcEX) is 100 µA when Vo = 50 V and Ta = +85°C.
