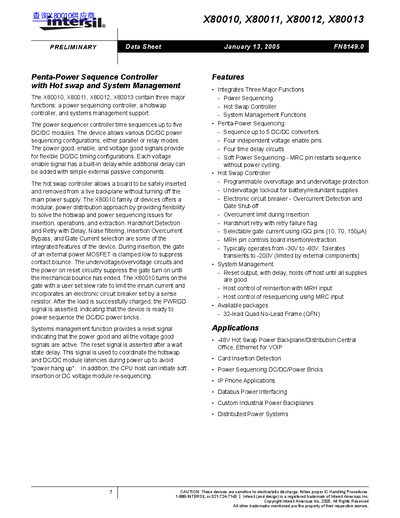

X80010, X80011, X80012, X80013 are Intersil’s five-way power sequence controller with hot swap and system management function. It can achieve various DC/DC power sequencing configurations in parallel or relay modes.
The Intersil X80010, X80011, X80012, and X80013 devices integrate three major functions: a power sequencing controller, a hot swap controller, and system management support. The power sequencer controller time sequences up to five DC/DC modules, allowing various configurations in either parallel or relay modes. It utilizes power good, enable, and voltage good signals to provide flexible DC/DC timing configurations, with built-in delays for each voltage enable signal.
| Supply Operating Range | 10 to 14 V |
|---|---|
| Supply Current | 25 to 5 mA |
| Regulated 5V Output | 4.5 to 6.0 V |
| Gate Pin Current | 46.2 to 58.8 mA |
| Temperature Range (Industrial) | -40°C to 85°C |
| Over-current threshold | 45 to 55 mV |
The devices contain three major functions: a power sequencing controller, a hot swap controller, and systems management support.
The power sequencer controller can time sequence up to five DC/DC modules.
The device typically operates from -30V to -80V and tolerates transients to -200V.
