DM7404 is a hex inverting gate.

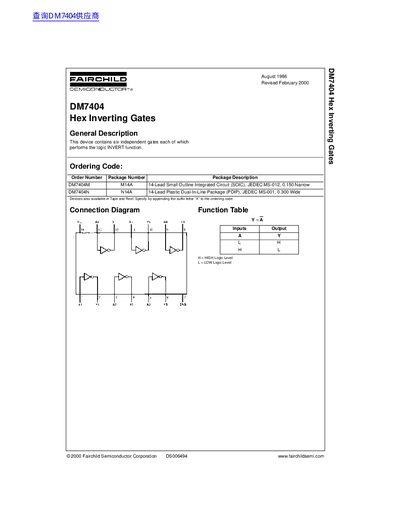

This document provides technical specifications for the DM7404, a device containing six independent gates that perform the logic INVERT function. It includes ordering codes for various packages, such as the 14-Lead Small Outline Integrated Circuit (SOIC) and the 14-Lead Plastic Dual-In-Line Package (PDIP).
The datasheet details absolute maximum ratings, recommended operating conditions, and electrical characteristics including input/output voltages and currents. It also lists switching characteristics for propagation delay times and provides physical dimensions for the available packages.
| Supply Voltage | 4.75V to 5.25V |
|---|---|
| Operating Free Air Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -65°C to +150°C |
| HIGH Level Output Current | -0.4 mA |
| LOW Level Output Current | 16 mA |
| Propagation Delay Time LOW-to-HIGH | 39 ns |
| Propagation Delay Time HIGH-to-LOW | 15 ns |
The device contains six independent gates each of which performs the logic INVERT function.
The device is available in a 14-Lead Small Outline Integrated Circuit (SOIC) and a 14-Lead Plastic Dual-In-Line Package (PDIP).
No, Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
