DM7416 is a hex inverting buffer with high voltage open-collector outputs. Each buffer performs the logic INVERT function, and external pull-up resistors are required for proper logical operation.

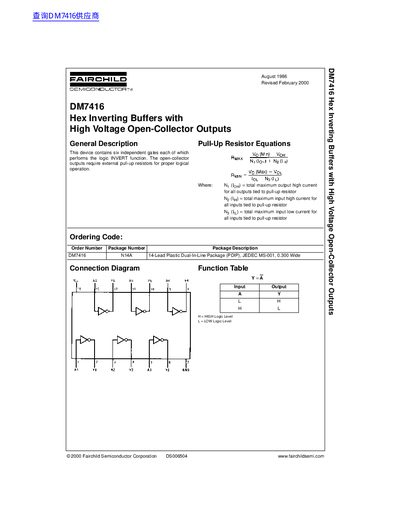

This document describes the DM7416, a semiconductor device containing six independent gates that perform the logic INVERT function. The device features high voltage open-collector outputs which require external pull-up resistors for proper logical operation. It is available in a 14-Lead Plastic Dual-In-Line Package (PDIP).
The datasheet provides comprehensive technical data including absolute maximum ratings, recommended operating conditions, and electrical characteristics such as propagation delay time and supply current. It also includes a connection diagram, function table, and physical dimensions for the N14A package.
| Number of Gates | Six independent gates |
|---|---|
| Logic Function | INVERT |
| Storage Temperature Range | -65°C to +150°C |
| Package Type | 14-Lead Plastic Dual-In-Line Package (PDIP) |
The device contains six independent gates each of which performs the logic INVERT function.
Yes, the open-collector outputs require external pull-up resistors for proper logical operation.
