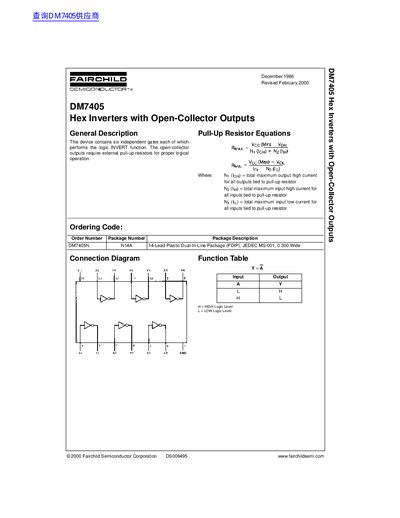

This document is the DM7405 device product manual, which introduces the basic functions, characteristics, pin definitions, package forms, application circuits, etc. of the device.
The DM7405 is a device containing six independent gates that perform the logic INVERT function. It features open-collector outputs which require external pull-up resistors for proper logical operation. The document provides ordering codes and connection diagrams.
| Supply Voltage | 4.75V to 5.25V |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Package Type | 14-Lead Plastic Dual-In-Line Package (PDIP) |
The device contains six independent gates each of which performs the logic INVERT function.
The maximum supply voltage is 5.25V.
It uses a 14-Lead Plastic Dual-In-Line Package (PDIP) with package number N14A.
