DM7406 is a six-way inverting buffer produced by Fairchild Semiconductor Corporation, with high voltage open collector outputs

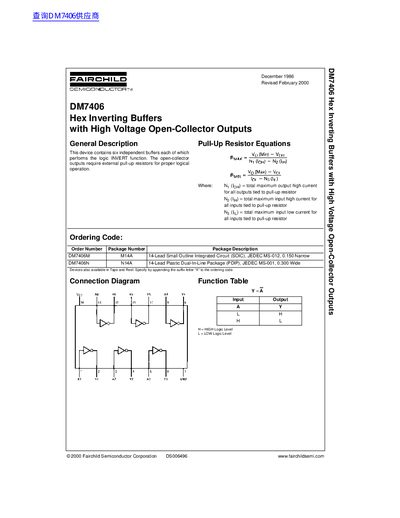

This document describes the DM7406, a semiconductor device containing six independent buffers that perform the logic INVERT function. The device features high voltage open-collector outputs which require external pull-up resistors for proper logical 1 operation. It is designed for use with supply voltages ranging from 4.75V to 5.25V and can operate over a free air temperature range of 0°C to +70°C.
| Supply Voltage | 4.75V to 5.25V |
|---|---|
| Input Voltage | 5.5V |
| Output Voltage | 30V |
| Operating Temperature | 0°C to +70°C |
| Low Level Output Current | 40 mA |
| Propagation Delay Time (HIGH-to-LOW) | 38 ns |
The device contains six independent buffers each of which performs the logic INVERT function.
The device is available in a 14-Lead Small Outline Integrated Circuit (SOIC) and a 14-Lead Plastic Dual-In-Line Package (PDIP).
