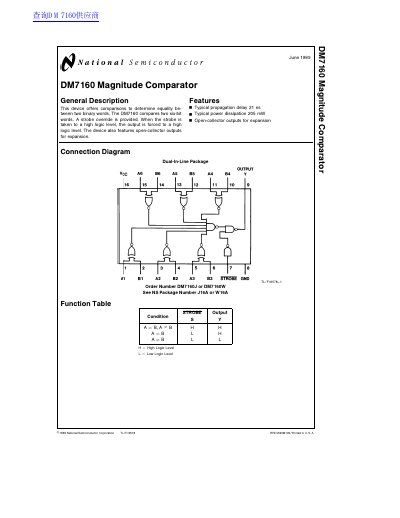

DM7160 is a magnitude comparator that can compare two binary strings and output the result
The DM7160 is a 6-bit magnitude comparator designed to determine equality between two binary words. It includes a strobe override function that forces the output to a high logic level when the strobe signal is high, and features open-collector outputs to facilitate expansion.
| Word Width | 6-bit |
|---|---|
| Typical Propagation Delay | 21 ns |
| Typical Power Dissipation | 205 mW |
| Supply Voltage | 4.5V to 5.5V |
| Output Type | Open-collector |
When the strobe is taken to a high logic level, the output is forced to a high logic level.
The absolute maximum supply voltage rating is 7V.
The typical propagation delay is 21 ns.
