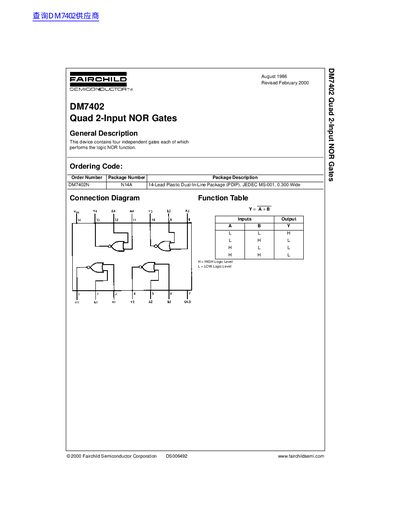

This datasheet lists the product information of DM7402 Quad 2-Input NOR Gates.
This document describes the DM7402, a device containing four independent gates that perform the logic NOR function. It provides the general description, connection diagram, and function table for the component.
The datasheet includes absolute maximum ratings, recommended operating conditions, and electrical characteristics such as supply voltage, input/output currents, and propagation delay times. It also specifies physical dimensions for the 14-Lead Plastic Dual-In-Line Package (PDIP).
| Supply Voltage | 4.75V to 5.25V |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -65°C to +150°C |
| HIGH Level Output Current | -0.4 mA |
| LOW Level Output Current | 16 mA |
| Package Type | 14-Lead Plastic Dual-In-Line Package (PDIP) |
The device contains four independent gates each of which performs the logic NOR function.
The maximum supply voltage is 5.25V.
