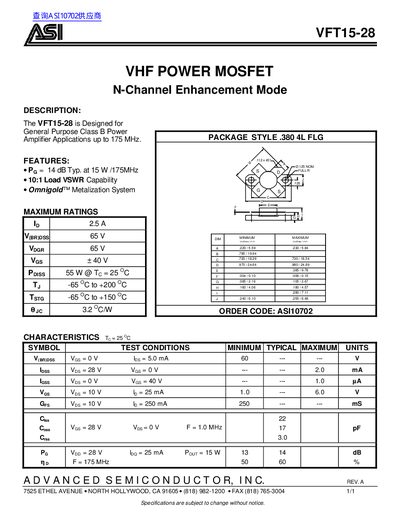

The VFT15-28 is a N-channel enhancement mode MOSFET designed for general purpose Class B power amplifier applications up to 175 MHz.
The ASI VFT15-28 is an N-Channel Enhancement Mode Power MOSFET designed for general-purpose Class B amplifier applications up to 175 MHz. It features a .380 4L FLG package style and utilizes the Omnigold™ Metalization System.
| Package Style | .380 4L FLG |
|---|---|
| Operating Frequency | up to 175 MHz |
| Operating Temperature Range | -65 °C to +200 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Drain-Source Breakdown Voltage | 65 V |
| Gate-Source Breakdown Voltage | +40V |
| Gain (Pg) | 14 dB Typ. |
