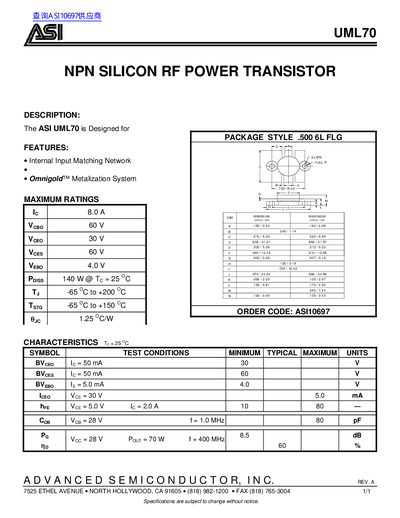

The ASI UML70 is a NPN silicon RF power transistor designed for high power applications. It features an internal input matching network and the Omnigold™ metalization system. The maximum current rating is 8.0A, the maximum voltage rating is 60V, and the maximum power dissipation rating is 140W.
The ASI UML70 is an NPN silicon RF power transistor designed with an internal input matching network. It utilizes the Omnigold™ Metalization System to ensure high performance in radio frequency applications.
Key specifications include a maximum collector current of 2.0A and a power dissipation of 140W at 25°C. The device operates within a temperature range of -65°C to +150°C.
| Collector Current (Ic) | 2.0A |
|---|---|
| Power Dissipation (Pd) | 140 W @ To = 25°C |
| Operating Temperature Range | -65 °C to +150 °C |
| Collector-Emitter Voltage (Vceo) | 30 V |
The device has a maximum collector current of 2.0 A.
The transistor dissipates 140 W when the case temperature is 25°C.
The device operates from -65°C to +150°C.
