The ASI UML5 is a NPN silicon RF power transistor designed for high frequency power applications. It features the Omnigold™ metalization system, has a maximum current of 10 A, a maximum voltage of 60 V and 35 V, a maximum power dissipation of 140 W, and a junction temperature range of -65°C to +200°C.

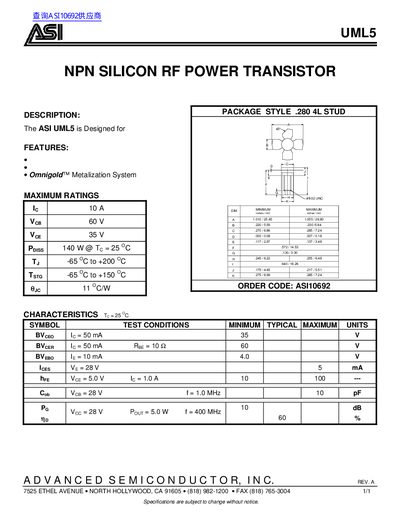

The document describes the ASI UML5, an NPN silicon RF power transistor designed with the Omnigold™ Metalization System. It is packaged in a .280 4L stud style.
Key electrical characteristics and maximum ratings are listed for operation at various temperatures, including collector-emitter voltage, current gain, and power dissipation limits.
| Package Style | .280 4L STUD |
|---|---|
| Metalization System | Omnigold™ Metalization System |
| Operating Temperature Range | -65 °C to +200 °C |
| Storage Temperature Range | -65 °C to +150 °C |
The maximum power dissipation is 140 W when the temperature is 25 °C.
The device operates from -65 °C to +150 °C.
The maximum collector-emitter voltage is 60 V.
