VFT5-28SL is a N-channel enhancement mode VHF power MOSFET designed for Class A and AB VHF power amplifiers operating at frequencies up to 250 MHz.

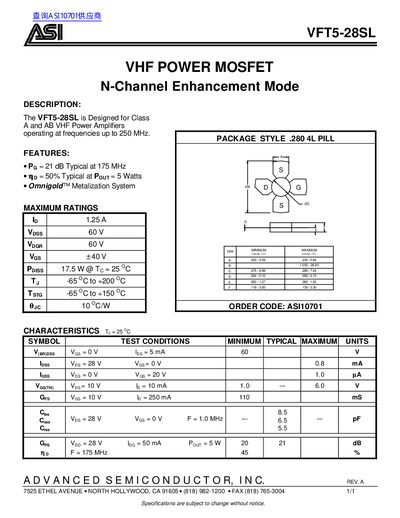

The document is a single-page datasheet for the VFT5-28SL, an N-channel enhancement mode VHF Power MOSFET. It is specifically designed for use in Class A and AB VHF power amplifier applications operating at frequencies up to 250 MHz.
Key features highlighted include a typical gain of 21 dB at 175 MHz and a typical efficiency of 50% at an output power of 5 Watts. The device utilizes the Omnigold™ Metalization System.
| Maximum Drain Current (ID) | 1.25 A |
|---|---|
| Typical Gain at 175 MHz | 21 dB |
| Typical Efficiency at 5 Watts Output | 50% |
| Maximum Operating Junction Temperature (TJ) | +200 OC |
The device is designed for Class A and AB VHF power amplifiers operating at frequencies up to 250 MHz.
The typical gain is 21 dB at a frequency of 175 MHz.
The maximum drain current rating is 1.25 A.
