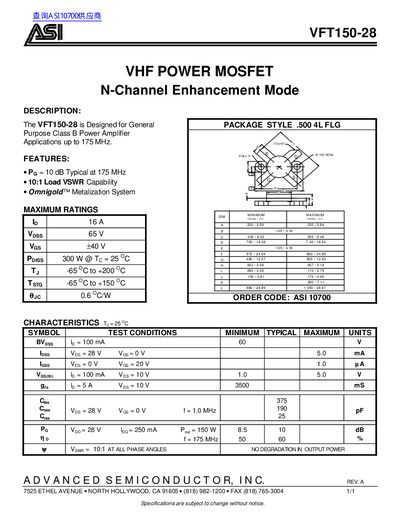

The VFT150-28 is an N-channel enhancement mode VHF power MOSFET with a maximum current rating of 16A, a maximum voltage rating of 65V, and a maximum power rating of 300W. This device features the Omnigold™ metalization system and has a 10:1 load VSWR capability and 10dB typical gain.
The ASI VFT150-28 is an N-Channel Enhancement Mode Power MOSFET designed for general purpose Class B power amplifier applications operating up to 175 MHz. Key features include a typical gain (Pg) of 10 dB at 175 MHz, a 10:1 load VSWR capability, and the use of the Omnigold™ Metalization System.
| Operating Frequency | up to 175 MHz |
|---|---|
| Gain (Pg) | 10 dB Typical |
| Load VSWR Capability | 10:1 |
| Package Style | 500 4L FLG |
The device is designed for applications up to 175 MHz.
The typical gain is 10 dB at 175 MHz.
Yes, it has a 10:1 load VSWR capability with no degradation in output power.
