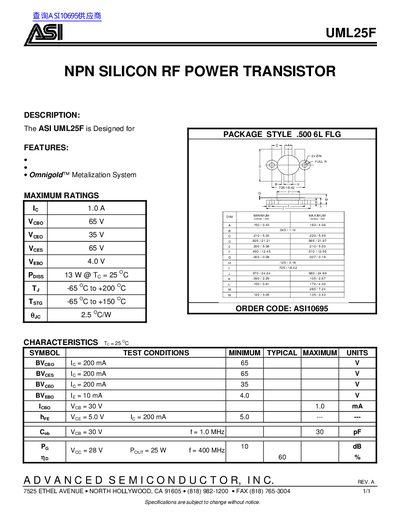

This is a datasheet for the UML25F power transistor produced by A D V A N C E D S E M I C O N D U C T O R, I N C. The transistor has a BVCBO of 65 V, a BVCES of 65 V, a BVCEO of 35 V, a BVEBO of 4.0 V, an ICBO of 1.0 mA, a hFE of 5.0, a Cob of 30 pF, a PG of 10 and a ηηD of 60 dB.
The ASI UML25F is an NPN silicon RF power transistor designed for specific applications. It features the Omnigold™ Metalization System and is available in a 9 package style with a 0.5006L FLG configuration.
The document lists maximum ratings including a collector current of 1.0A, a collector-emitter voltage of 65V, and a power dissipation of 13W at 25°C. Operating temperatures range from -65°C to +200°C.
| Package Style | 9 |
|---|---|
| Collector-Emitter Voltage | 65 V |
| Collector-Base Voltage | 35 V |
| Emitter-Base Voltage | 40V |
| Power Dissipation | 13 W |
| Operating Temperature | -65 °C to +200 °C |
| Storage Temperature | -65 °C to +150 °C |
The order code is ASI10695.
It uses the Omnigold™ Metalization System.
