74ABT16273 74ABTH16273 is a 16-bit D flip-flop with +64mA/-32mA output capability, TTL input and output switching levels, live insertion/extraction permitted, power-up reset, 74ABTH16273 incorporates bus-hold data inputs that eliminate the need for external pull-up resistors to hold unused inputs, Latch-up protection exceeds 500mA per JEDEC Std 17, ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model standard.

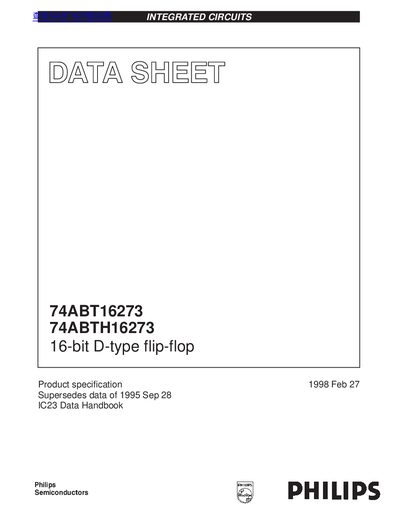

This document provides product specifications for the Philips 74ABT16273 and 74ABTH16273, which are high-performance BiCMOS devices combining low power dissipation with high speed and output drive. These edge-triggered D-type flip-flops feature TTL input and output switching levels and support live insertion or extraction.
| Device Type | 16-bit D-type edge triggered flip-flops |
|---|---|
| Output Capability | +64mA/-32mA |
| Propagation Delay (Typical, Vcc=5.0V) | 25 ns |
The 74ABTH16273 incorporates bus-hold data inputs which eliminate the need for external pull-up resistors, whereas the 74ABT16273 does not have this feature.
Yes, this device can be used as two 8-bit flip-flops or one 16-bit flip-flop.
