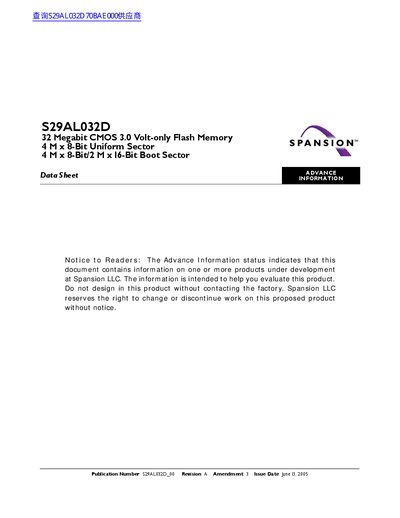

This document is a datasheet for S29AL032D, a 32 Megabit CMOS 3.0 Volt-only Flash Memory. It provides information about the features and characteristics of the product, such as its 32 Megabit capacity, 4M x 8-Bit uniform sector, and 4M x 8-Bit/2M x 16-Bit boot sector.
The S29AL032D is a 32 megabit, 3.0 volt-only flash memory device organized as 4M x 8-Bit or 2 M x 16-Bit sectors. It features high performance with access times as fast as 70 ns and ultra-low power consumption in sleep and standby modes.
The device offers flexible sector architecture, including boot sector models with eight 8-Kbyte sectors and sixty-three 64-Kbyte sectors, or uniform sector models with sixty-four 64-Kbyte sectors. It includes hardware features such as a Ready/Busy pin for cycle detection and a Secured Silicon Sector for permanent identification.
| Capacity | 32 Megabit |
|---|---|
| Voltage Range | 2.7 to 3.6 volt |
| Access Time | 70 ns |
| Sleep Mode Current | 200 nA |
| Standby Mode Current | 200 nA |
| Read Current | 9mA |
| Program/Erase Current | 20 mA |
| Cycling Endurance | 1,000,000 cycles per sector typical |
| Data Retention | 20 years typical |
The device requires only a single 3.0 volt power supply for both read and write functions.
The devices are offered in 40-pin TSOP, 48-pin TSOP and 48-ball FBGA packages.
No, this is Advance Information indicating the product is under development; do not design in without contacting the factory.
