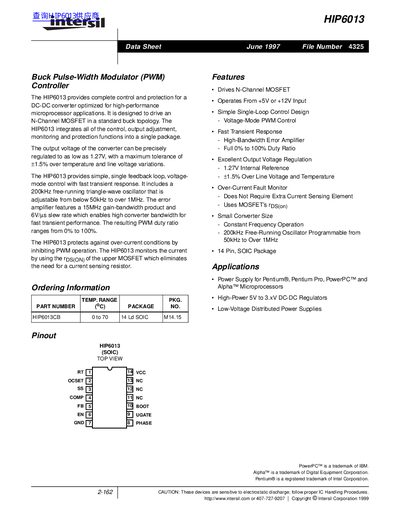

The HIP6013 is a buck pulse-width modulator (PWM) controller from Honeywell that provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive an N-Channel MOSFET in a standard buck topology and integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter can be precisely regulated to as low as 1.27V, with a maximum tolerance of ±1.5% over temperature and line voltage variations.
The HIP6013 is a Buck Pulse-Width Modulator (PWM) controller designed for high-performance microprocessor applications. It provides complete control and protection for a DC-DC converter optimized to drive an N-Channel MOSFET in a standard buck topology. The device integrates all control, output adjustment, monitoring, and protection functions into a single 14-pin SOIC package.
| Supply Voltage | +5V or +12V |
|---|---|
| Output Voltage Regulation | 1.27V minimum |
| Voltage Tolerance | +1.5% |
| Free-Running Frequency | 200kHz |
| Frequency Range | 50kHz to 1MHz |
| Error Amplifier Gain-Bandwidth | 15MHz |
| Error Amplifier Slew Rate | 6V/us |
| Package Type | 14 Pin, SOIC |
| Operating Temperature | 0°C to 70°C |
The device includes a 1.27V internal reference voltage.
No, it uses the MOSFET's on-resistance to monitor current.
The PWM duty ratio ranges from 0% to 100%.
