XP6116 is a silicon PNP epitaxial planer transistor for switching/digital circuits. Its features are two elements incorporated into one package. This type of dual-element transistor has the advantage of reducing the mounting area and assembly cost.

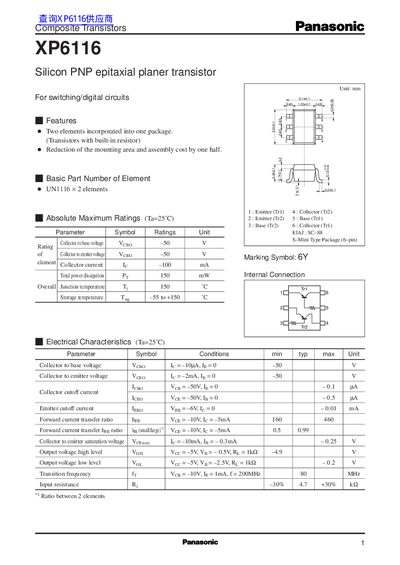

The document describes the Panasonic XP6116, a composite transistor designed for switching and digital circuits. It incorporates two transistors with built-in resistors into a single S-Mini Type (SC-88) 6-pin package to reduce mounting area and assembly costs.
Key specifications include a collector-to-base voltage rating of -50V, a total power dissipation of 10mW, and a transition frequency of up to 200MHz. The datasheet provides absolute maximum ratings, electrical characteristics, and graphical data regarding output capacitance, current transfer ratios, and input/output voltages.
| Package Type | S-Mini Type Package (6-pin) |
|---|---|
| Collector to base voltage | -50 Vv |
| Junction temperature | +150 °C |
| Transition frequency | 200MHz |
